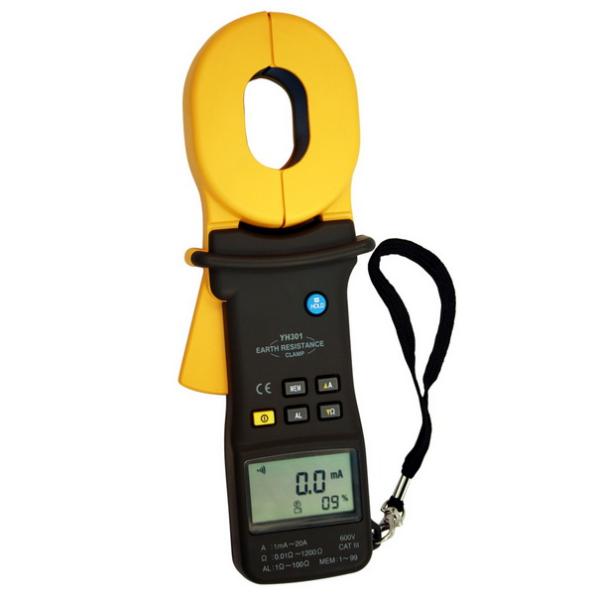

45 x 32mm Large Jaws Digital Earth Resistance Tester Clamp Exactitude Measurement , YH301

Place of Origin : Guangdong, China (Mainland)

Model Number : YH301

Certification : CE

MOQ : 1 sample order

Price : the best price

Packaging Details : carton box for outer ,gift box for unit

Delivery Time : According to customers' need.

Payment Terms : T/T Western Union MoneyGram

Supply Ability : 8000 pcs per/month

Contact Now

45 x 32mm Large Jaws Digital Earth Resistance Tester Clamp Exactitude Measurement , YH301

Quick Detail:

0.01Ω high accuracy for low resistance measurement
0.001Ω high resolution
Record 99 resistance measurement values
Set alarm threshold in 1Ω to 100Ω
Measure leakage current and neutral current
45mm x 32mm large jaws of exactitude measurement probe
Indication of the batteries capacity
Digital measurement, autorange, easy operation
Double insulation, strengthen the interference resistance
Untouched measurement, ensure the safety
One second per test. Imply the quick measurement
Display: LCD 3 3/4 digits

Description:

Earth resistance clamp is a breakthrough from traditional tester. Neither the supplementary earth leads nor the

break earth equipment is necessary.

Ground resistance result can be safe and fast only by clamping the ground line.Additionally, current testing is also provided.

High sensitivity clamp meter can measure the leakage current to 1mA, neutral current to 30A RMS. It is especially important for testing

ground circuit with strong interferecnce and ripple that will influence the electrical quality.Besides industrial

electronic equipment.

It is also widely used in the field of electric power distribution, telecommunication and architectural ground.

SPECIFICATIONS

Range

Accuracy

Resolution

Resistance

0.01Ω to 0.999Ω
1Ω ~ 9.99Ω
10Ω ~ 99.9Ω
100Ω ~ 199.9Ω
200Ω ~ 400Ω
400Ω～500Ω

500Ω ~ 1200Ω

±(1.5% + 0.01Ω)
±(1.5% + 0.1Ω)
±(2.0% + 0.3Ω)
±(3.0% + 1Ω)
±(6.0% + 5Ω)
±(10% + 10Ω)
approx. 20%

0.001Ω
0.01Ω
0.1Ω
1Ω
5Ω
10Ω
20Ω

Current

100mA
300mA
1A
3A
10A
20A

±(2.5% + 1mA)
±(2.5% + 2mA)
±(2.5% + 0.003A)
±(2.5% + 0.01A)
±(2.5% + 0.03A)
±(2.5% + 0.05A)

0.1mA
0.3mA
0.001A
0.003A
0.01mA
0.03mA
